Sherex Fastening Solutions’ Hand Tool Calibration Unit is an instrument designed to help manufacturers and operators enhance the quality of their rivet nut installations in real time.
Click the image to view the brochure

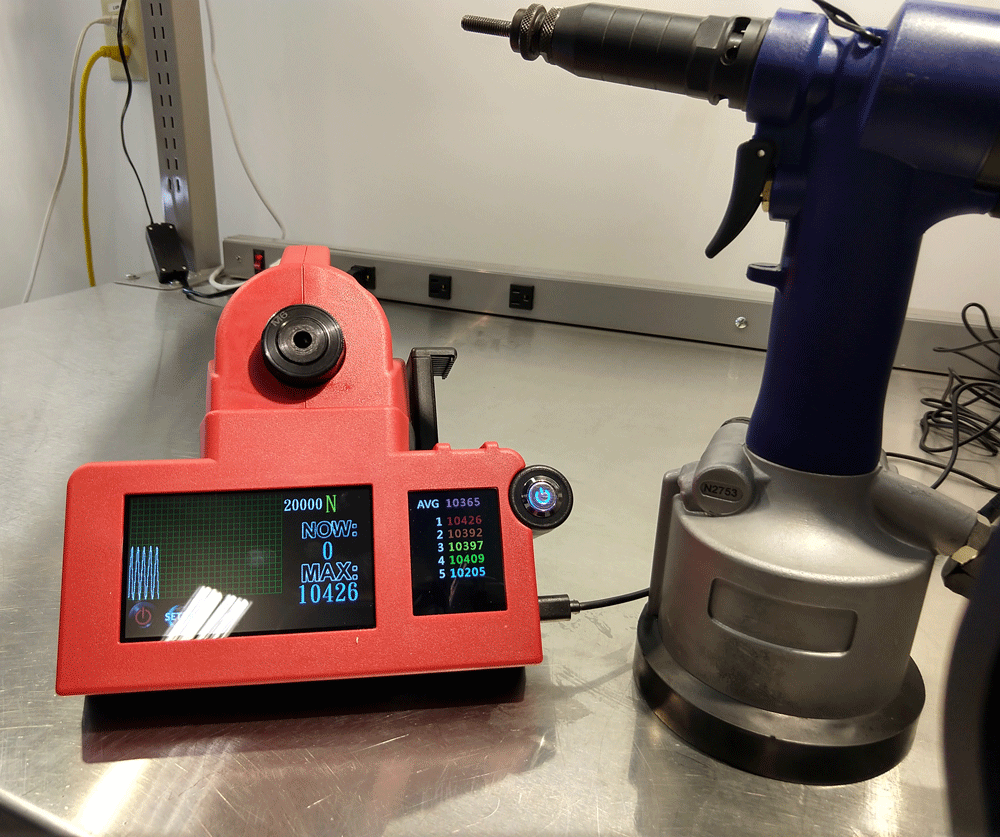

The Hand Tool Calibration Unit measures the pulling force for both pneumatic and hydro-pneumatic tools, ensuring the tool meets the required setting force for installation. Operators can measure the pull force before installation, ensuring the tool is correctly calibrated.
The unit displays the value of the pulling force, the load from the last seven pulls, and the average load from when the unit was turned on. A guide of the required pulling force for each rivet nut is included, eliminating guesswork in setting the installation tool.
This tool allows operators to periodically check the pulling force, study tool functionality, and determine if maintenance or repair is needed. Benefits include increased installation efficiency, reduced maintenance, less scrap, improved tool functionality, scheduled maintenance, historical performance tracking, and comparative analysis of installation methods.
Improving the quality of installations has a lot of other benefits besides increasing the performance of your product, including:
- Installation efficiency
- Maintenance reductions
- Reducing scrap
- Improving tool functionality
- Scheduling tool maintenance
- Ability to see the historical performance of the tool or operator
- Compare installation methods
- Mobile
FEATURES:

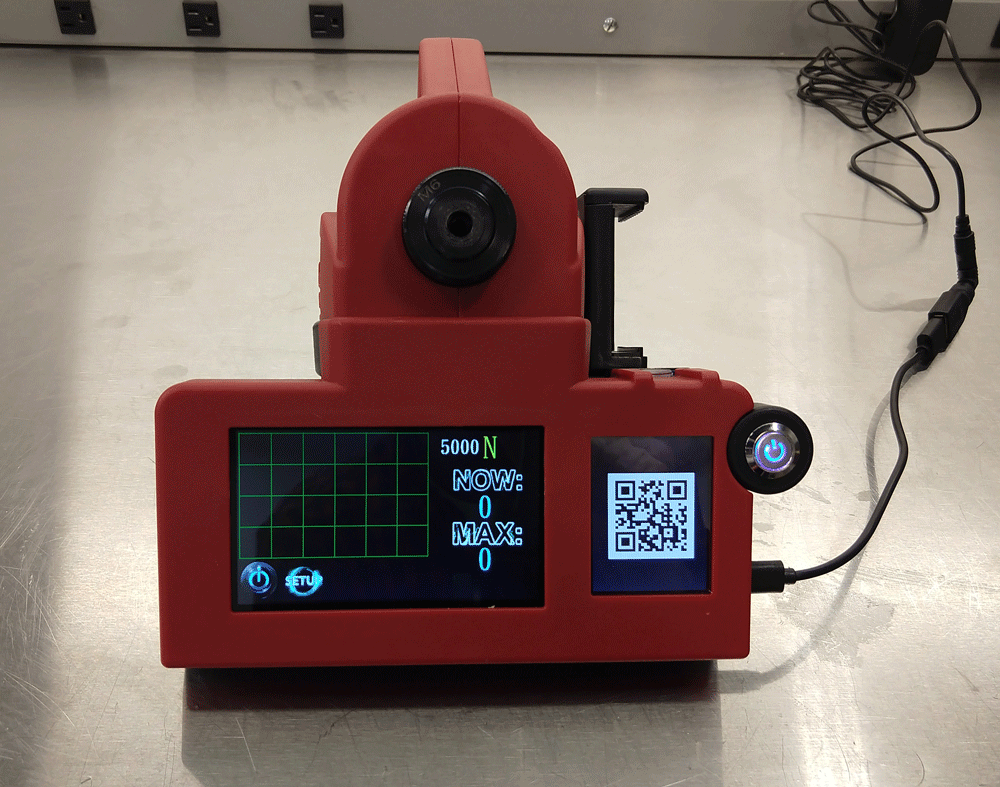

Design: Sturdy, workstation-compatible, and mobile. Dual touch display screens for superior user experience.
- Primary screen shows the value curve when load is detected.
- Secondary screen shows data from previous seven tests and the average since the unit was turned on.
Data Storage:Integrated microSD card slot for data measurement.
Power Supply: USB-C connection or rechargeable battery pack.
Headset: Interchangeable headsets for different thread sizes.
Sherex Hand Tool Calibration Unit Part Numbers
| Part Number | Description |
|---|---|
| SHTC-2A | Main Cal. Unit |
| SHTC-HS-0632 | Head Set - Mandrel & Anvil - 6-32 |
| SHTC-HS-0832 | Head Set - Mandrel & Anvil - 8-32 |
| SHTC-HS-1024 | Head Set - Mandrel & Anvil - 10-24 |
| SHTC-HS-1032 | Head Set - Mandrel & Anvil - 10-32 |
| SHTC-HS-2520 | Head Set - Mandrel & Anvil - 1/4-20 |
| SHTC-HS-2528 | Head Set - Mandrel & Anvil - 1/4-28 |
| SHTC-HS-3118 | Head Set - Mandrel & Anvil - 5/16-18 |
| SHTC-HS-3124 | Head Set - Mandrel & Anvil - 5/16-24 |
| SHTC-HS-3716 | Head Set - Mandrel & Anvil - 3/8-16 |
| SHTC-HS-3724 | Head Set - Mandrel & Anvil - 3/8-24 |
| SHTC-HS-5013 | Head Set - Mandrel & Anvil - 1/2-13 |
| SHTC-HS-M4 | Head Set - Mandrel & Anvil - 4 MM |
| SHTC-HS-M5 | Head Set - Mandrel & Anvil - 5 MM |
| SHTC-HS-M6 | Head Set - Mandrel & Anvil - 6 MM |
| SHTC-HS-M8 | Head Set - Mandrel & Anvil - 8 MM |
| SHTC-HS-M10 | Head Set - Mandrel & Anvil - 10 MM |
| SHTC-HS-M12 | Head Set - Mandrel & Anvil - 12 MM |
For more information, visit the Sherex Hand Tool Calibration Unit page.
